4 Way Fiber Optic Splitter 1*4 Sc Upc Plc Splitter G657A1 Cable 0.9mm steel tubeFor Terminal Box

Product Categories
Shenzhen damu technology co. LTD
Contact Now

4 Way Fiber Optic Splitter 1*4 Sc Upc Plc Splitter G657A1 Cable 0.9mm steel tubeFor Terminal Box

  • 1
  • 2
  • 3

Brand Name : DAMU

Model Number : DM-PS-

Certification : CE ROSH ISO9001

Place of Origin : China

MOQ : 3km

Payment Terms : T/T

Supply Ability : 50000km/month

Delivery Time : 5-8

Packaging Details : 1KM-5KM per wooden drum, Weight: 50KG/KM,Drum Size:68*68*60cm

Product name : PLC splitter

Application : FTTH FTTB FTTX Network,CATV,FTTH FTTB FTTX PON CATV

Fiber type : G.657A with 0.9mm loose tube

Operating temperature : -40℃ to 85℃

Connector : SC/APC/UPC

Warranty : 3 years

Color : White,12 colors are available

Fiber length : 1m or customized

Return loss : APC≥60dB

Cable diameter : 0.9mm

Contact Now

Product Details
Connector Type SC,FC,LC,ST Ferrule End-face PC, UPC,APC
Fiber Type G652D G657A Fiber Mode SM MM
Package Steel Tube, ABS Black Box Structure 1*2/1*4/1*8/1*16/1*32/1*64
High Light

fiber optic coupler

,

fiber optic plc splitter

Specification:


Table 1 – 1×N PLC Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Table 2 – 2×N PLC Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector
  3. Product Description

    4 Way Fiber Optic Splitter 1*4 Sc Upc Plc Splitter G657A1 Cable 0.9mm steel tubeFor Terminal Box

    Description:

    Fiber Splitter is one of the most important passive devices in the optical fiber link.

    PLC Splitter is optical fiber tandem device with many input terminals and many output terminals, Especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.

    Feature:

    Good high temperature low temperature performance

    Convenient engineering applications

    Fine polarization

    Wide scope wavelength

    Tight and fine structure
    Excellent parameters on IL & RL

    High reliability and directivity

    Non-sensitive wavelength

    Application:

    CATV network
    LAN, WAN and MAN
    Testing equipments

    Fiber optic communication system
    FTTX access network based on PON structure
    Local loop and passive optical network (PON)

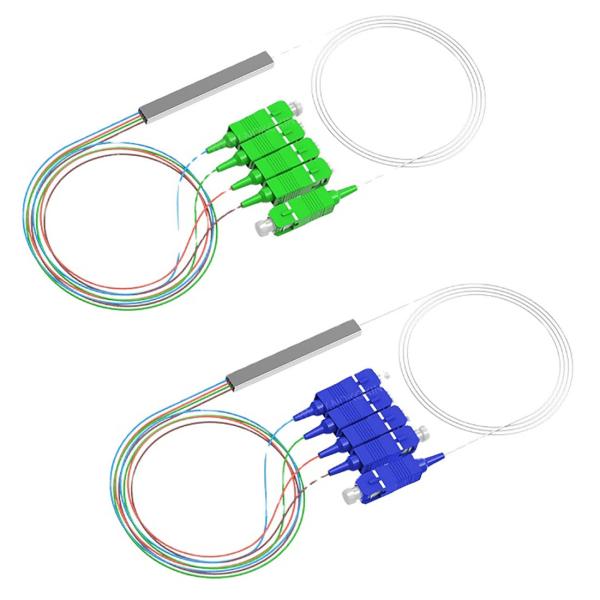

Product Picture:

4 Way Fiber Optic Splitter 1*4 Sc Upc Plc Splitter G657A1 Cable 0.9mm steel tubeFor Terminal Box4 Way Fiber Optic Splitter 1*4 Sc Upc Plc Splitter G657A1 Cable 0.9mm steel tubeFor Terminal Box4 Way Fiber Optic Splitter 1*4 Sc Upc Plc Splitter G657A1 Cable 0.9mm steel tubeFor Terminal Box

FAQ

1.who are we?
We are based in Guangdong, China, start from 2018,sell to Eastern Europe(18.00%),Western Europe(13.00%),Northern
Europe(11.00%),South Asia(10.00%),North America(9.00%),Mid East(8.00%),Central America(7.00%),South America(7.00%),Eastern
Asia(6.60%),Africa(5.00%),Domestic Market(2.20%),Southern Europe(1.20%),Oceania(1.00%),Southeast Asia(1.00%). There are total
about 11-50 people in our office.

2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
fiber optic polishing machine,fast connector,fiber optic polishing jig,fiber optic patch cord

4.why should you buy from us not from other suppliers?
12 years of experience advanced level in optical fiber equipment, we have OEM and ODM capabilities. We have always been in the
leading position in the same industry with superb workmanship, excellent quality, good pre-sales and after-sales services.

5.what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
